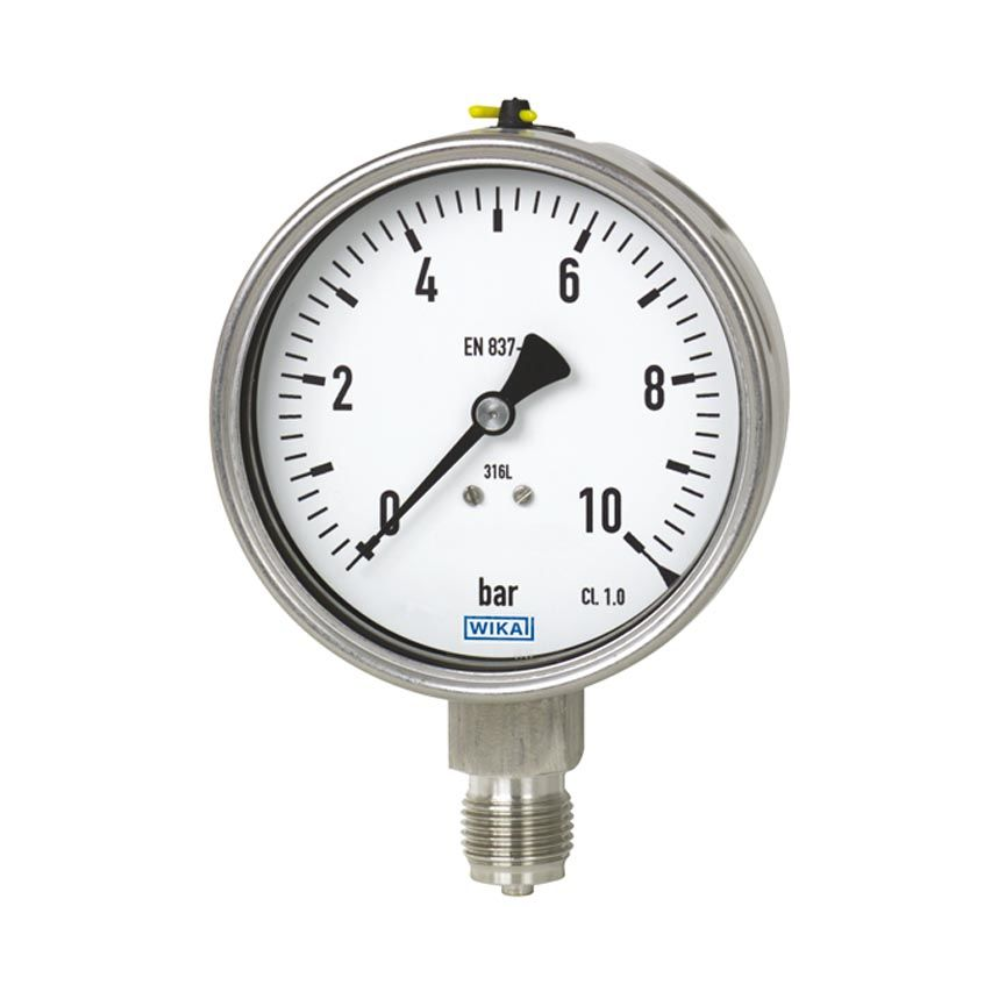

WIKA NPT 1/2 Analogue Pressure Gauge 6bar Bottom Entry 100mm Outside Diameter 48680923

The Wika Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments. Wika manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40.100. As a safety function, this instrument has a blow-out device with blow-out plug on the back of the case. In the event of a failure, overpressure can escape there. Excellent load cycle stability and shock resistance With case filling for applications with high dynamic pressure loads and vibrationsCompletely from stainless steel Brand WIKA Maximum Pressure Measurement 6bar Mounting Type Bottom Entry Minimum Pressure Measurement 0bar Display Type Analogue Connection Size NPT 1/2 Gauge Outside Diameter 100mm Series 23X.50
