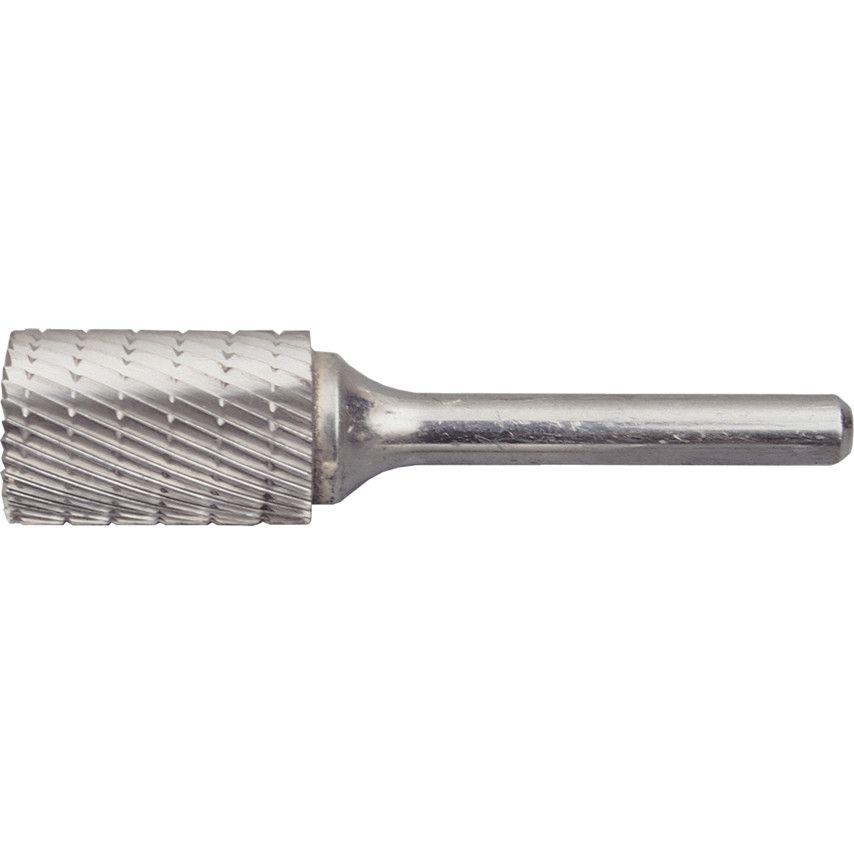

York Carbide Burr, Uncoated, Cut 9 - Chipbreaker, 8mm, Cylindrical End Cut

Specification Property Value Brand York Cut No. 9 [#] Cut Type Chipbreaker [txt] EAN13 Barcode 5036140216716 eCl@ss Code 21010101 Finish/Coating Uncoated [txt] Head Diameter 8 mm Head Length 19 mm Head Material Carbide [txt] Head Shape Cylindrical End Cut [txt] Included Angle N/A [txt] Overall Length 65 mm Shank Diameter 6 mm Supplier Part No. 2100209K UNSPSC Code 23251706 Further Information Property Value Cut Type Cut 9 - Chipbreaker Finish/Coating Uncoated Head Diameter 8 mm Head Length 19 mm Head Material Carbide Head Shape Cylindrical End Cut Included Angle 90 ° Overall Length 65 mm Shank Diameter 6mm Carbide Rotary Burrs - Cylindrical-End Cutting Cylindrical-End Cutting All sizes are nominal with a 6mm shank unless other wise stated. Cut Numbers: Cut 3 - Rapid Cut. for use on softer non ferrous and plastic materials, i.e aluminium, fibreglass, plastics, hard rubber and zinc alloy, Cut 6 - Double Cut. Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use. Cut 9 - Chipbreaker Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron. Suitable for deburring and polishing of cast iron, cast steel, carbon steel, alloy steel and stainless steel etc. up to HRC65 hardness. Please note: • Work piece and tools should always be steady and well supported. • Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal and high revolutions 'LOW FEED - HIGH SPEED'. • Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used. • Always ensure that the tool is rated to the recommended operating speed of the burr.
